Description

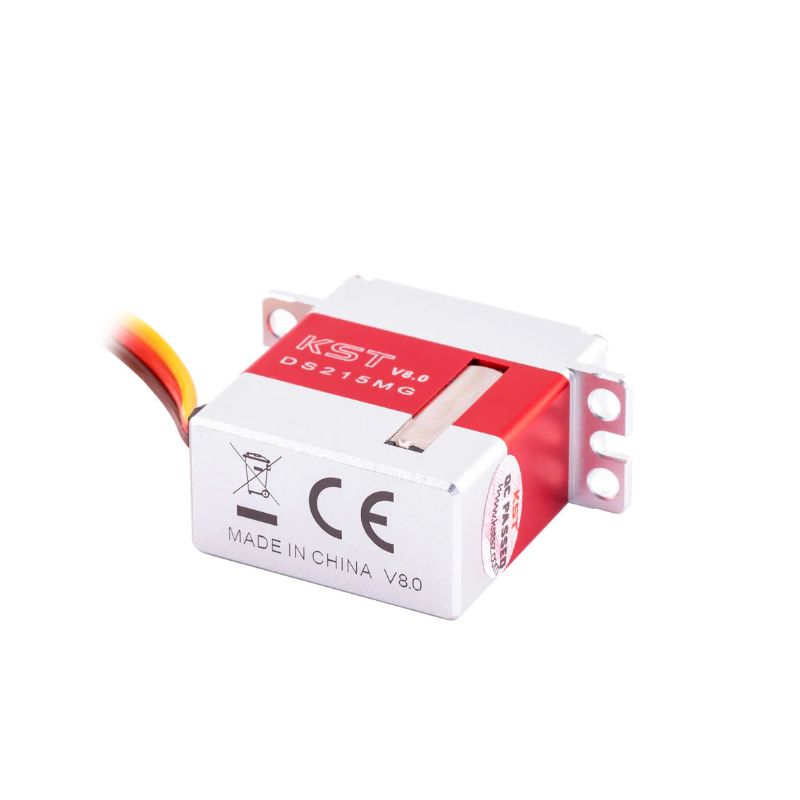

micro servo metal gear KST DS215MG V8.0 Digital Metal Gear Micro ServoDS215MG HV micro servo is an amazingly powerful and fast metal cased high voltage servo designed to be run directly from a 2S LiPo without needing a regulator. With 4. 0 kgf. cm of torque and a rotational velocity of 0. 05 sec 60 it combines exceptional power with great precision and leading speed. Weighing only 20g it is a great servo for glider elevator & rudder and heli cyclic & tail rotor. Also popular on RC EDF jets. The KST DS215MG HV is
DS215MG HV micro servo is an amazingly powerful and fast metal-cased high voltage servo designed to be run directly from a 2S LiPo without needing a regulator. With 4.0 kgf.cm of torque and a rotational velocity of 0.05 sec/60° it combines exceptional power with great precision and leading speed.
Weighing only 20g it is a great servo for glider elevator & rudder and heli cyclic & tail rotor. Also popular on RC EDF jets. The KST DS215MG HV is designed for use with a 2S LiFe or 2S LiPo battery. Do not use on a 5V supply. It is the high voltage replacement of the acclaimed KST DS115MG servo.
Features
- Compact and Lightweight Design
- Excellent Torque and Speed
- Designed for High Performance RC Gliders
- Excellent Heat Dissipation
- Programmable
- Ideal for RC Glider & Helicopters
Specifications
- Item: DS215MG Micro Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque: [email protected], [email protected], [email protected]
- Speed: 0.060sec/60°@6.0V, 0.055sec/60°@7.4V, 0.050sec/60°@8.4V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±70° = 140° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB
- Case Dimensions: 23mm*12mm*27.5mm±0.2mm
- Weight: 20g±10%
- Accessories: DS215MG Metal Gear Set
